Plot Themes and Aesthetics

This vignette will demonstrate pmxhelpr functions for viewing and modifying plot themes and theme elements for all package plotting functions, which includes plot_dvtime(), plot_dvconc(), plot_doseprop(), plot_gof(), and plot_vpc_cont(). This vignette will introduce the theory and naming conventions behind the theme factory functions for each plot, as well as individual plot element constructors.

options(scipen = 999, rmarkdown.html_vignette.check_title = FALSE)
library(pmxhelpr)
library(dplyr, warn.conflicts =  FALSE)
library(ggplot2, warn.conflicts =  FALSE)
library(Hmisc, warn.conflicts = FALSE)
library(patchwork, warn.conflicts = FALSE)

Data and Model Objects

The example datasets used in this vignette are based around the data_sad dataset internal to pmxhelpr. This dataset is based on a single ascending dose (SAD) study of an orally administered drug product with a parallel group food effect (FE) cohort and is formatted in a analysis-ready format for non-linear mixed effects (NLME) Population PK or PK/PD modeling. data_sad_pkfit is a modified version of data_sad, which includes additional PK model predictions appended.

This vignette will assume familiarity with these internal datasets from other vignettes. These elements will not be reviewed in detail in this vignette, which is focused only on theme aesthetic controls across plotting functions.

data_sad

Dataset definitions can be viewed by calling ?data_sad.

Let’s define some variables that may be useful in plotting and filter down to PK or PD relevant records.

data <- data_sad %>%
  mutate(`Food Status` = ifelse(FOOD == 0, "Fasted", "Fed"),
         DoseFood = paste(DOSE, "mg", `Food Status`)) %>%
  mutate(`Dose and Food` = var_addn(DoseFood, ID))

gof_data <- data_sad_pkfit %>%
  mutate(`Food Status` = ifelse(FOOD == 0, "Fasted", "Fed"),
         DoseFood = paste(DOSE, "mg", `Food Status`)) %>%
  mutate(`Dose and Food` = var_addn(DoseFood, ID))

data_pk <- filter(data, CMT %in% c(1,2))
data_pd <- filter(data, CMT %in% c(1,3))
data_pkfit <- filter(gof_data, CMT %in% c(1,2))
data_nca <- filter(data_sad_nca, PART == "Part 1-SAD")
doseprop_data_nca <- df_doseprop(data_nca, metrics = c("aucinf.obs", "cmax"), metric_name_var = "PPTESTCD")

An example PK model (pkmodel) in mrgmod format is provided in the internal package library. This is loaded using the helper function model_mread_load(), which wraps mrgsolve::mread.

model <- model_mread_load("pkmodel")
#> Building pkmodel_cpp ... done.

Overview

Every pmxhelpr plot function (plot_dvtime(), plot_dvconc(), plot_doseprop(), plot_gof(), plot_vpc_cont()) accepts a theme argument that controls the appearance of points, lines, ribbons, error bars, and reference lines. The theme system has two layers:

Element constructors (pmx_point(), pmx_line(), etc.) define what to style. Each constructor maps directly to a ggplot2 geom and only accepts aesthetics relevant to that geom.
Theme factories (plot_dvtime_theme(), plot_gof_theme(), etc.) define where those elements go. Each factory returns a named list of default element objects, one per visual layer in the plot. User overrides are merged field-by-field into these defaults.

This design means every plot function uses the same workflow. The defaults can be viewed by calling the theme factory function corresponding to the plot with no arguments, which produces default plot aesthetics.

# View defaults
plot_dvtime_theme()
#> <plot_dvtime_theme>
#>   obs_point     <pmx_point>: shape = 1, size = 0.75, alpha = 0.5
#>   obs_line      <pmx_line>: linewidth = 0.5, linetype = 1, alpha = 0.5
#>   cent_point    <pmx_point>: shape = 16, size = 1.25, alpha = 0
#>   cent_line     <pmx_line>: linewidth = 0.75, linetype = 1, alpha = 1
#>   cent_errorbar <pmx_errorbar>: linewidth = 0.75, linetype = 1, alpha = 1, width = NULL
#>   ref_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loq_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1

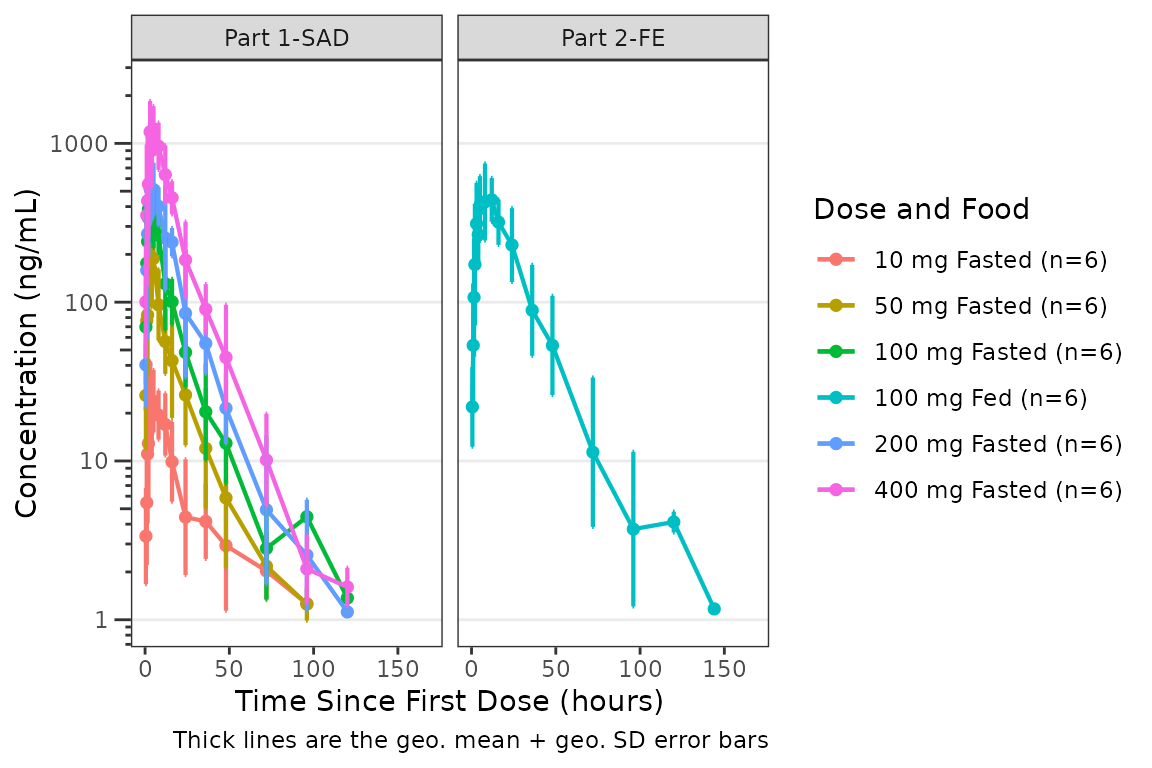

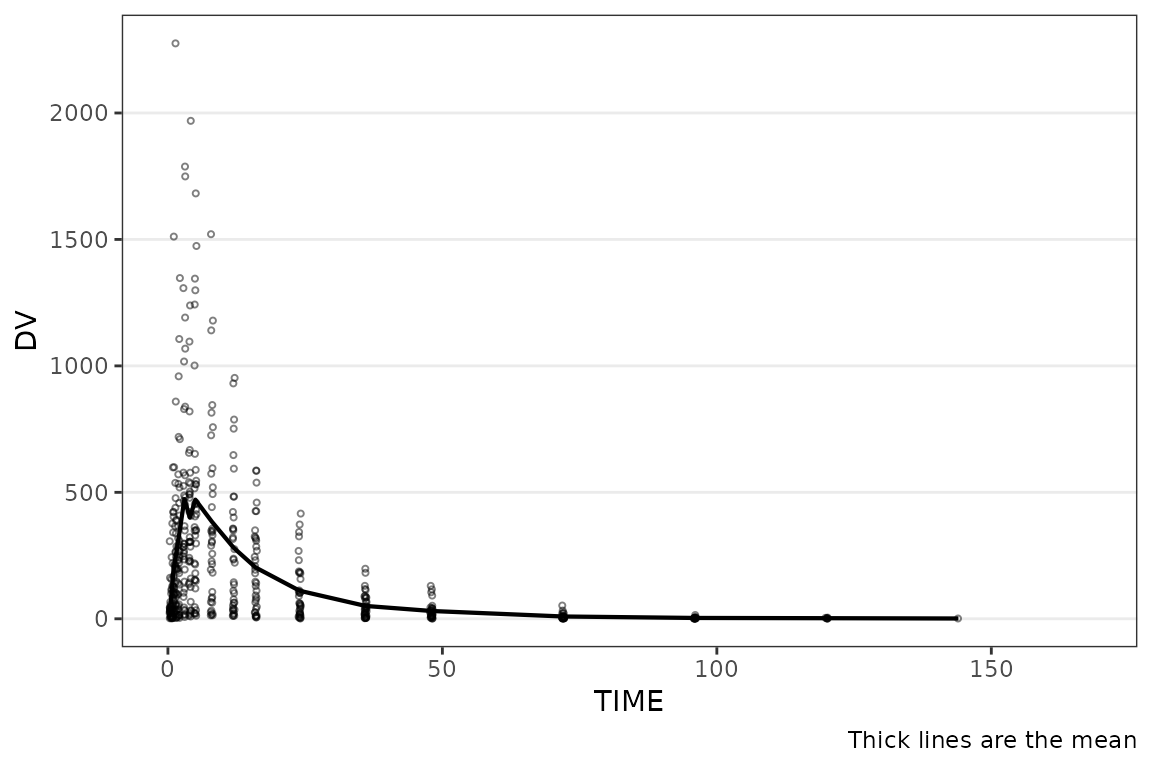

plot_dvtime(data_pk, dv_var = ODV, theme = plot_dvtime_theme())

The workflow to update themes is consistent across plotting functions.

# Override specific fields — unspecified fields keep their defaults
new_dvtime_theme <- plot_dvtime_theme(cent_line = pmx_line(linetype = "dashed"))
plot_dvtime(data_pk, dv_var = ODV, theme = new_dvtime_theme)

Element Constructors

Each constructor creates a named list with an S3 class tag.

# Full element with all fields
pmx_point(shape = 16, size = 1.25, alpha = 1, color = "blue")
#> <pmx_point>
#>   shape = 16, size = 1.25, alpha = 1, color = blue

Only non-NULL fields are stored, so partial overrides are easy to define by only passing the elements to override. When a user-supplied element is merged into a default, each specified field replaces the corresponding default. Unspecified fields are preserved. This occurs without user input in the plot theme constructor factory functions.

# Partial override — only the fields you want to change
pmx_point(size = 2)
#> <pmx_point>
#>   size = 2

The available element constructors are as follows:

pmx_point()
- ggplot layers:geom_point, stat_summary
- function fields: shape, size, alpha, color
pmx_line()
- ggplot layers:geom_line, geom_hline
- function fields: shape, size, alpha, color
pmx_ribbon()
- ggplot layers:geom_ribbon
- function fields: fill, alpha, color, linetype, linewidth
pmx_errorbar()
- ggplot layers:geom_errorbar,
- function fields: linewidth, linetype, alpha, width
pmx_trend()
- ggplot layers:geom_smooth,
- function fields: linewidth, linetype, color, se_color, se_alpha
pmx_style()
- Convenience shortcut function
- function fields: alpha, color

Theme Factories

Naming Convention

Theme keys follow a role_element pattern where the role identifies the data layer and the element identifies the geom type:

obs_point — observed data, point geom
cent_line — central tendency, line geom
ref_line — reference line, line geom

When a role uses only one geom type, the key uses the role plus the element suffix (e.g., ref_line, loq_line).

Shared Elements Across Factories

Several element roles appear across multiple theme factories:

Element Key: ref_line
- Element Constructor: pmx_line
- Used in: plot_dvtime_theme, plot_gof_theme, plot_dvconc_theme
Element Key: loq_line
- Element Constructor: pmx_line
- Used in: plot_dvtime_theme, plot_gof_theme, plot_vpc_theme
Element Key: cent_errorbar
- Element Constructor: pmx_errorbar
- Used in: plot_dvtime_theme, plot_gof_theme
Element Key: obs_point
- Element Constructor: pmx_point
- Used in: plot_dvtime_theme, plot_gof_theme, plot_dvconc_theme

The same constructors and merge logic apply everywhere, so learning the system once covers all plot types.

Role-Level Shortcuts with `pmx_style()`

When a role has both _point and _line elements (e.g., obs_point and obs_line), you can set shared aesthetics on both at once using pmx_style(). This is passed to a shared key for observations (obs).

# These two calls produce the same result:
plot_dvtime_theme(obs_point = pmx_point(alpha = 0.3),
                  obs_line = pmx_line(alpha = 0.3))
#> <plot_dvtime_theme>
#>   obs_point     <pmx_point>: shape = 1, size = 0.75, alpha = 0.3
#>   obs_line      <pmx_line>: linewidth = 0.5, linetype = 1, alpha = 0.3
#>   cent_point    <pmx_point>: shape = 16, size = 1.25, alpha = 0
#>   cent_line     <pmx_line>: linewidth = 0.75, linetype = 1, alpha = 1
#>   cent_errorbar <pmx_errorbar>: linewidth = 0.75, linetype = 1, alpha = 1, width = NULL
#>   ref_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loq_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1

plot_dvtime_theme(obs = pmx_style(alpha = 0.3))
#> <plot_dvtime_theme>
#>   obs_point     <pmx_point>: shape = 1, size = 0.75, alpha = 0.3
#>   obs_line      <pmx_line>: linewidth = 0.5, linetype = 1, alpha = 0.3
#>   cent_point    <pmx_point>: shape = 16, size = 1.25, alpha = 0
#>   cent_line     <pmx_line>: linewidth = 0.75, linetype = 1, alpha = 1
#>   cent_errorbar <pmx_errorbar>: linewidth = 0.75, linetype = 1, alpha = 1, width = NULL
#>   ref_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loq_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1

pmx_style() accepts color and alpha — the two fields shared by both pmx_point() and pmx_line().

When both a style shortcut and an explicit element override are provided, the style is applied first, then the element override wins for any conflicting fields:

# Style sets alpha on both point and line,
# then the explicit override changes just the point size
theme <- plot_dvtime_theme(
  obs = pmx_style(alpha = 0.3),
  obs_point = pmx_point(size = 3)
)
theme$obs_point  # alpha = 0.3, size = 3
#> <pmx_point>
#>   shape = 1, size = 3, alpha = 0.3
theme$obs_line   # alpha = 0.3, linewidth = 0.5 (default)
#> <pmx_line>
#>   linewidth = 0.5, linetype = 1, alpha = 0.3

Defaults in Theme Factories

Defaults for `plot_dvtime()` in `plot_dvtime_theme()`

plot_dvtime_theme()
#> <plot_dvtime_theme>
#>   obs_point     <pmx_point>: shape = 1, size = 0.75, alpha = 0.5
#>   obs_line      <pmx_line>: linewidth = 0.5, linetype = 1, alpha = 0.5
#>   cent_point    <pmx_point>: shape = 16, size = 1.25, alpha = 0
#>   cent_line     <pmx_line>: linewidth = 0.75, linetype = 1, alpha = 1
#>   cent_errorbar <pmx_errorbar>: linewidth = 0.75, linetype = 1, alpha = 1, width = NULL
#>   ref_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loq_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1

The relationship between element key, element constructor, and purpose is defined below:

obs_point | pmx_point | Observed data points
obs_line | pmx_line | Individual spaghetti lines connecting observations
cent_point | pmx_point | Central tendency points
cent_line | pmx_line | Central tendency lines
cent_errorbar | pmx_errorbar | Central tendency error bars
ref_line | pmx_line | Reference line (e.g., change-from-baseline, target value)
loq_line | pmx_line | LOQ reference line

Shortcuts: obs = obs_point/obs_line, cent = cent_point/cent_line accept pmx_style().

Defaults for `plot_gof()` in `plot_gof_theme()`

plot_gof_theme()
#> <plot_gof_theme>
#>   obs_point     <pmx_point>: shape = 1, size = 0.75, alpha = 0.5, color = darkgrey
#>   obs_line      <pmx_line>: linewidth = 0.5, linetype = 1, alpha = 0.75, color = darkgrey
#>   cent_point    <pmx_point>: shape = 16, size = 1.25, alpha = 0
#>   cent_line     <pmx_line>: linewidth = 0.75, linetype = 1, alpha = 1
#>   cent_errorbar <pmx_errorbar>: linewidth = 0.75, linetype = 1, alpha = 1, width = NULL
#>   ref_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loq_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   cent_color    <pmx_color>: dv = blue, pred = red, ipred = green

The relationship between element key, element constructor, and purpose is defined below:

obs_point | pmx_point | Observed data points (default: darkgrey)
obs_line | pmx_line | Individual spaghetti lines connecting observations (default: darkgrey)
cent_point | pmx_point | Shared central tendency points for DV, PRED, IPRED
cent_line | pmx_line | Shared central tendency lines for DV, PRED, IPRED
cent_errorbar | pmx_errorbar | Shared central tendency error bars
ref_line | pmx_line | Reference line
loq_line | pmx_line | LOQ reference line
cent_color | pmx_color | Overlay color mapping dv, pred, ipred (defaults: blue, red, green)

Shortcuts: obs = obs_point/obs_line, cent = cent_point/cent_line accept pmx_style(). Overlay colors are controlled via cent_color = pmx_color().

Defaults for `plot_dvconc` in `plot_dvconc_theme()`

plot_dvconc_theme()
#> <plot_dvconc_theme>
#>   obs_point <pmx_point>: shape = 1, size = 1.25, alpha = 0.5
#>   ref_line  <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loess     <pmx_trend>: linewidth = 1, linetype = 1, color = black, se_color = lightgrey, se_alpha = 0.4
#>   linear    <pmx_trend>: linewidth = 1, linetype = 2, color = black, se_color = lightgrey, se_alpha = 0.4

The relationship between element key, element constructor, and purpose is defined below:

obs_point | pmx_point | Observed data points
ref_line | pmx_line | Reference line (e.g., change-from-baseline)
loess | pmx_trend | LOESS trend line and confidence interval
linear | pmx_trend | Linear trend line and confidence interval

Shortcuts using pmx_style() are not relevant for this function.

Defaults for `plot_vpc_cont` in `plot_vpc_theme()`

plot_vpc_theme()
#> <plot_vpc_theme>
#>   obs_point       <pmx_point>: shape = 1, size = 1, alpha = 0.7, color = #0000FF
#>   obs_median_line <pmx_line>: linewidth = 1, linetype = solid, color = #FF0000
#>   obs_pi_line     <pmx_line>: linewidth = 0.5, linetype = dashed, color = #0000FF
#>   sim_pi_line     <pmx_line>: linewidth = 1, linetype = dotted, color = #000000
#>   sim_pi_ci       <pmx_ribbon>: fill = #0000FF, alpha = 0.15
#>   sim_pi_area     <pmx_ribbon>: fill = #0000FF, alpha = 0.15
#>   sim_median_line <pmx_line>: linewidth = 1, linetype = dashed, color = #000000
#>   sim_median_ci   <pmx_ribbon>: fill = #FF0000, alpha = 0.3
#>   loq_line        <pmx_line>: linewidth = 0.5, linetype = dashed, color = #990000

Shortcuts using pmx_style() are not relevant for this function.

Composing themes with the `+` operator

When you have a base theme handle and want to apply an override without rebuilding from defaults, use the + operator. The right-hand side is a partial pmx_theme (built with pmx_theme()), and only its keys win — every other key on the left side is preserved.

base_theme <- plot_vpc_theme()
red_obs    <- pmx_theme(list(obs_point = pmx_point(color = "red")))
new_theme  <- base_theme + red_obs

# Class is preserved — still a plot_vpc_theme
inherits(new_theme, "plot_vpc_theme")
#> [1] TRUE
new_theme$obs_point$color   # "red"
#> [1] "red"
new_theme$sim_pi_ci$fill    # untouched, still the default
#> [1] "#0000FF"

pmx_theme() is the public partial-theme constructor: it takes a named list of pmx_element objects and tags it with the pmx_theme class. With no subclass argument the partial is plot-type-agnostic; pass subclass = "plot_<type>_theme" if you need the partial to satisfy a specific class check.

+ is also defined on pmx_element for layering field-level overrides:

pmx_point(size = 2, color = "blue") + pmx_point(color = "red")
#> <pmx_point>
#>   size = 2, color = red

theme + NULL returns the theme unchanged — convenient for theme + maybe_extra_theme patterns where the right side may conditionally be NULL.

Examples

The following examples demonstrate common customization patterns. Each pattern applies to any plot function — only the theme factory and element keys change. These examples will endeavor to cover common use cases for default theme overrides.

Make Theme Overrides Inline

Pass element overrides directly in the theme argument. Only the fields specified are changed. This example removes points for observations, increases the size of the mean data points, and removes error bar caps directly within a plot_dvtime() plot call.

plot_dvtime(data = data_pk, dv_var = ODV, col_var = `Dose and Food`,
            cent = "mean_sdl", log_y = TRUE,
            theme = plot_dvtime_theme(obs_point = pmx_point(alpha = 0),
                                     cent_point = pmx_point(size =2, alpha = 1),
                                     cent_errorbar = pmx_errorbar(width = 1))) +
  labs(y = "Concentration (ng/mL)", x = "Time Since First Dose (hours)") +
  facet_wrap(~PART)

Make Theme Overrides with a Reusable Theme Object

A more common approach to modifying theme elements is to create a reusable theme object that can be passed to a series of plots. The example below produces the same plot output as the inline example above, but can be recycled to additional plots.

my_theme <- plot_dvtime_theme(obs_point = pmx_point(alpha = 0),
                                     cent_point = pmx_point(size =2, alpha = 1),
                                     cent_errorbar = pmx_errorbar(width = 1))

plot_dvtime(data = data_pk, dv_var = ODV, col_var = `Dose and Food`,
            cent = "mean_sdl", log_y = TRUE,
            theme = my_theme) +
  scale_x_continuous(breaks = seq(0, 168, 24))+
  labs(y = "Concentration (ng/mL)", x = "Time Since First Dose (hours)") +
  facet_wrap(~PART)

Remove Individual Data Points

A common use case for the theme argument is to set to alpha = 0 for data points to remove them from the plot. Those that are also part of a layer including both points and lines, may also be removed by setting size=0 with the corresponding line present. This example removes points for observations and central tendency means to emphasize the error bars.

plot_dvtime(data = data_pk, dv_var = ODV, col_var = PART,
            cent = "mean_sdl", dosenorm = TRUE, log_y = TRUE,
            theme = plot_dvtime_theme(obs_point = pmx_point(alpha = 0),
                                     cent_point = pmx_point(size = 0))) +
  labs(y = "Concentration (ng/mL)", x = "Time Since First Dose (hours)") +
  facet_wrap(~PART)

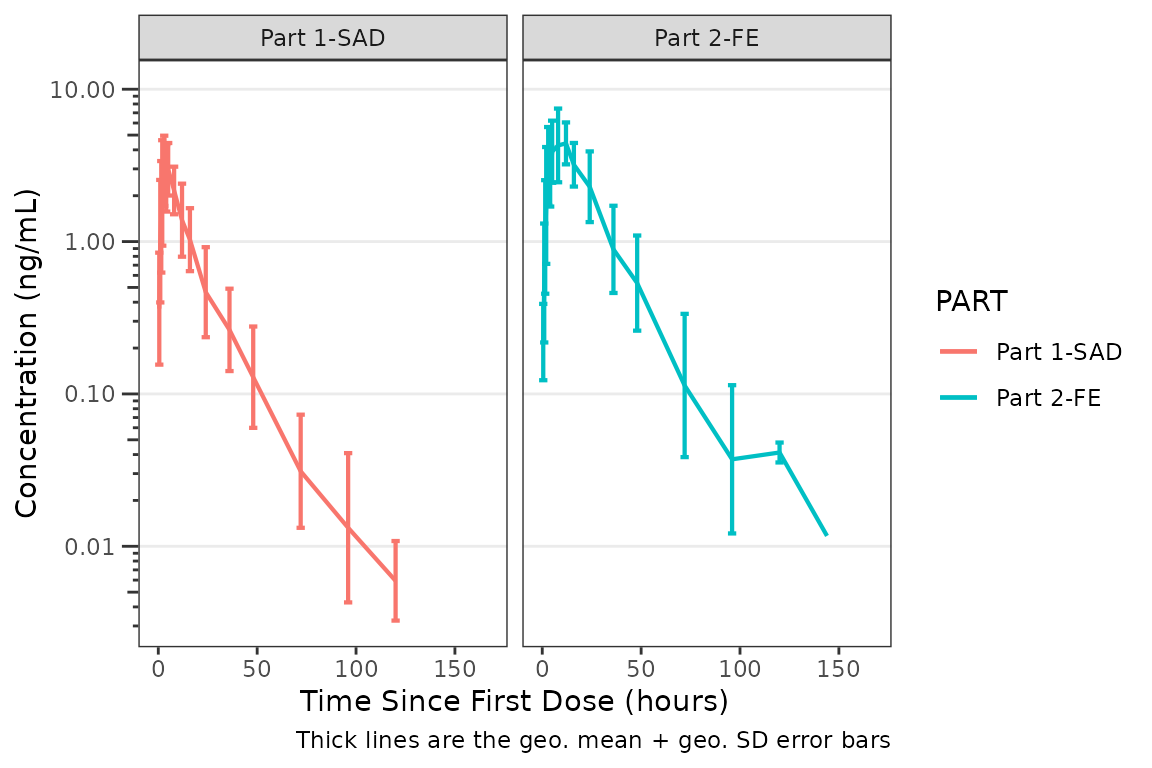

# Modifying Error Bar Width

The default error bar width is 2.5% of the maximum nominal time. Override with the width field:

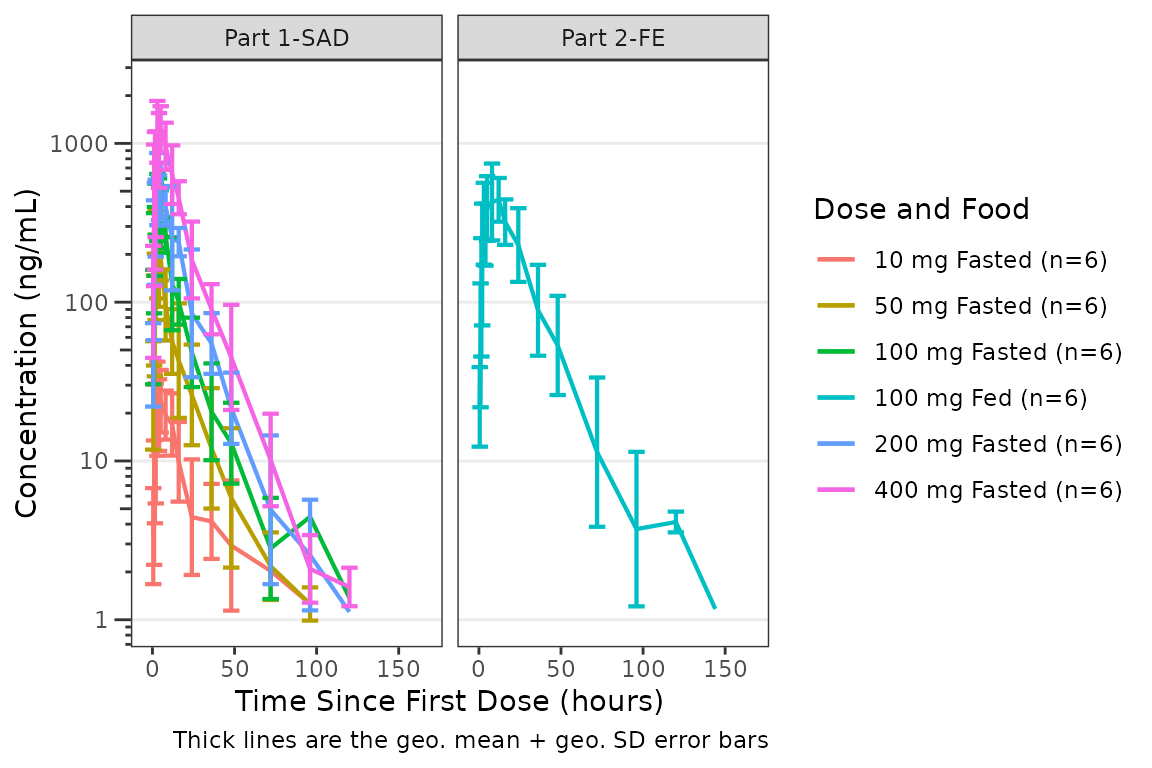

plot_dvtime(data = data_pk, dv_var = ODV, col_var = `Dose and Food`,
            cent = "mean_sdl", log_y = TRUE,
            theme = plot_dvtime_theme(obs_point = pmx_point(alpha = 0),
                                     cent_errorbar = pmx_errorbar(width = 10))) +
  labs(y = "Concentration (ng/mL)", x = "Time Since First Dose (hours)") +
  facet_wrap(~PART)

Modifying color and alpha for points or lines simultaneously with `pmx_style()`

Use pmx_style() to change the color of both point and line elements for a role in one call. This example uses it to change the color and alpha of the individual spaghetti line colors and the color and alpha of the central tendency line.

This is useful when you want to fade or recolor an entire layer without repeating yourself.

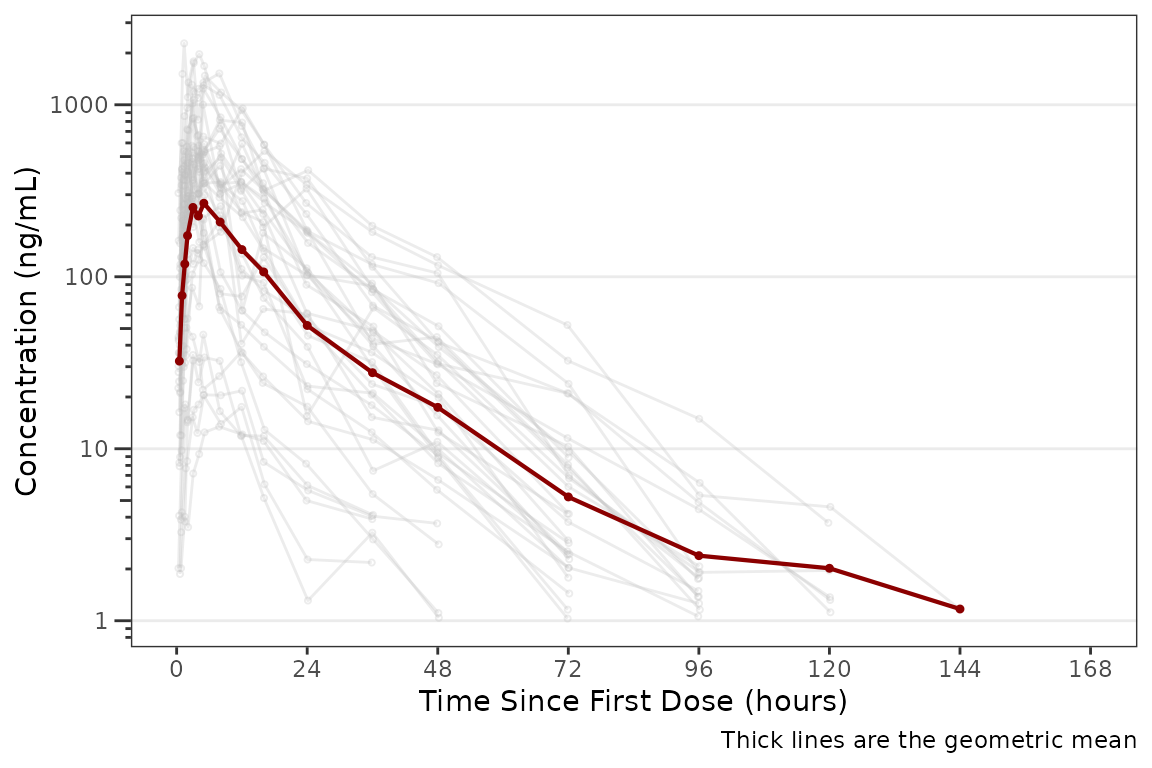

plot_dvtime(data = data_pk, dv_var = ODV, id_var = ID,
            theme = plot_dvtime_theme(obs = pmx_style(color = "grey", alpha = 0.3),
                                      cent = pmx_style(color = "darkred", alpha = 1)),
            log_y = TRUE) +
  scale_x_continuous(breaks = seq(0, 168, 24)) +
  labs(y = "Concentration (ng/mL)", x = "Time Since First Dose (hours)")

Trend Line Customization for `plot_dvconc_theme()` with `pmx_trend()`

pmx_trend() controls both the trend line and its standard error ribbon. The color, linewidth, and linetype fields style the line itself, while se_color and se_alpha style the confidence ribbon shown when se_loess = TRUE or se_linear = TRUE.

An example override of the line color and SE ribbon appearances is provided below.

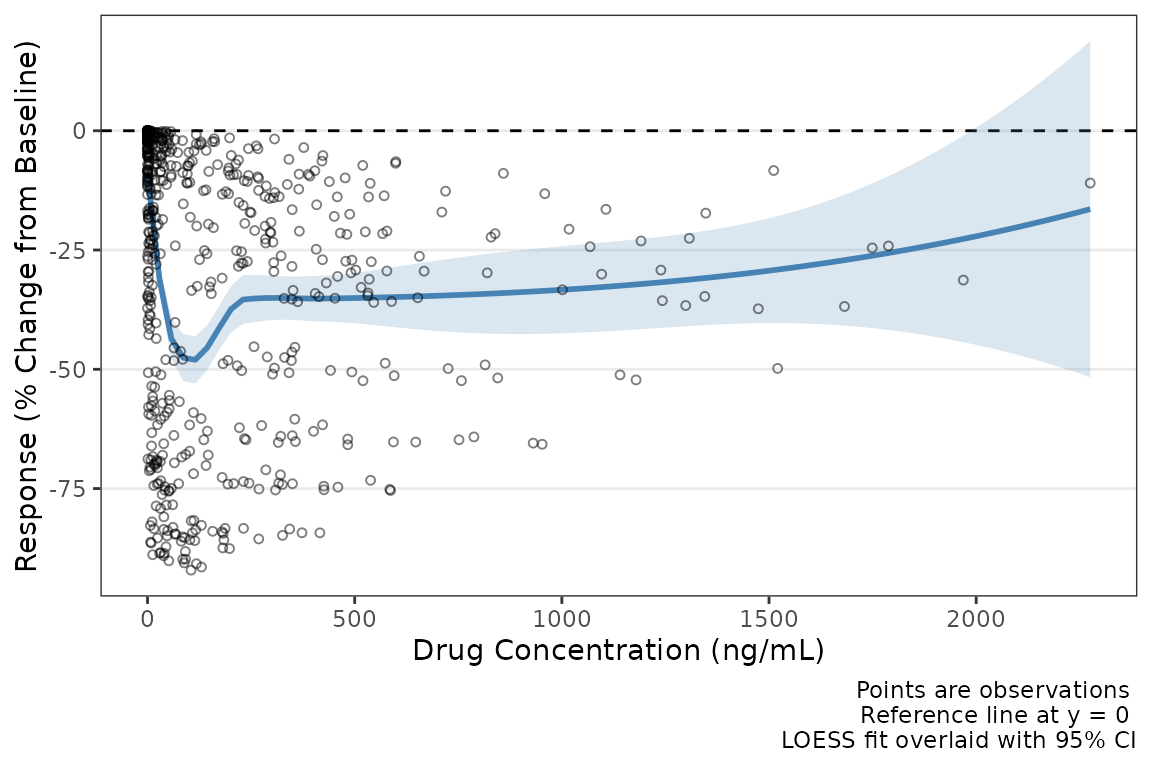

dvconc_theme <- plot_dvconc_theme(loess = pmx_trend(color = "steelblue", linetype = 1,
                                                    se_color = "steelblue", se_alpha = 0.2))

plot_dvconc(data = data_pd, dv_var = CFB, idv_var = CONC,
            loess = TRUE, se_loess = TRUE, ref = 0,
            theme = dvconc_theme) +
  labs(x = "Drug Concentration (ng/mL)", y = "Response (% Change from Baseline)")

Both trend elements can be customized independently. Here the LOESS line is styled as a solid blue line and the linear fit as a dashed red line.

new_linear_red <- pmx_theme(list(linear = pmx_trend(color = "firebrick", linetype = 2,
                                 se_color = "firebrick", se_alpha = 0.15)))
new_dvconc_theme <- dvconc_theme + new_linear_red

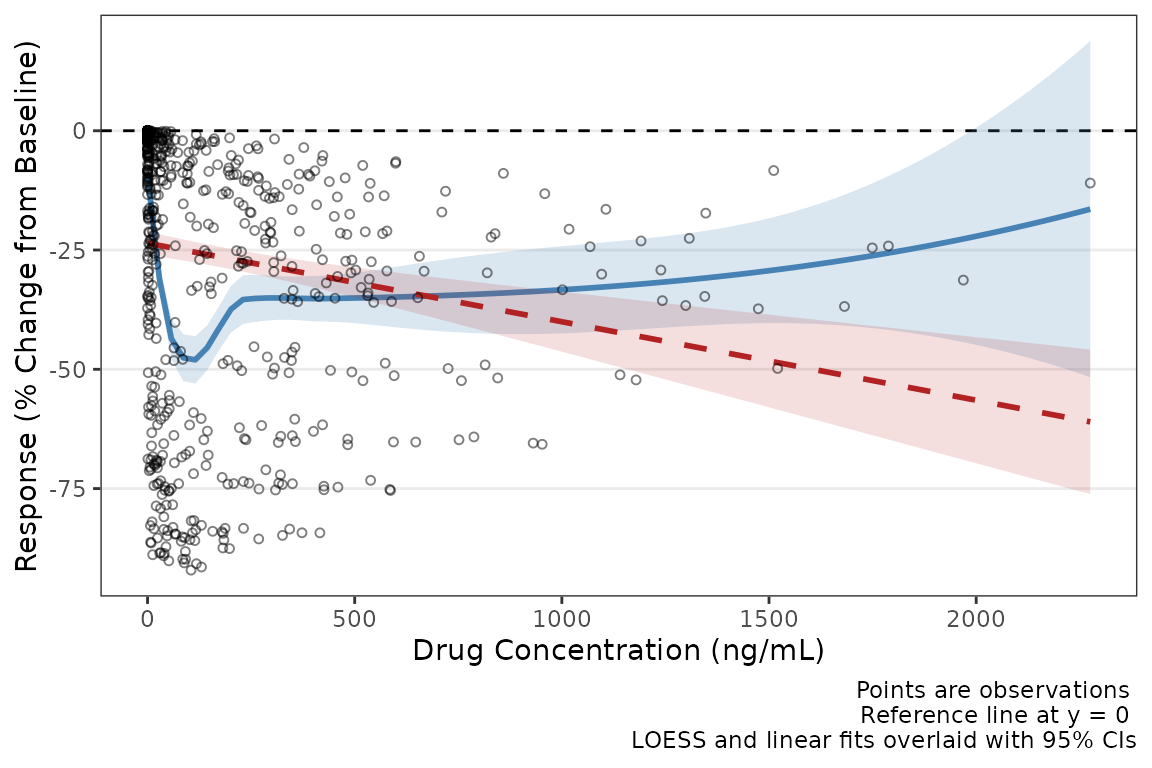

plot_dvconc(data = data_pd, dv_var = CFB, idv_var = CONC,
            ref = 0,
            loess = TRUE, linear = TRUE,
            se_loess = TRUE, se_linear = TRUE,
            theme = new_dvconc_theme) +
  labs(x = "Drug Concentration (ng/mL)", y = "Response (% Change from Baseline)")

Trend line customization for `plot_doseprop_theme()` with `pmx_trend()`

We can also apply customization using pmx_trend for dose-proportionality plots with plot_doseprop_theme(). We can recycle the previous new_linear_red object since plot_doseprop_theme shares a linear regression fit key.

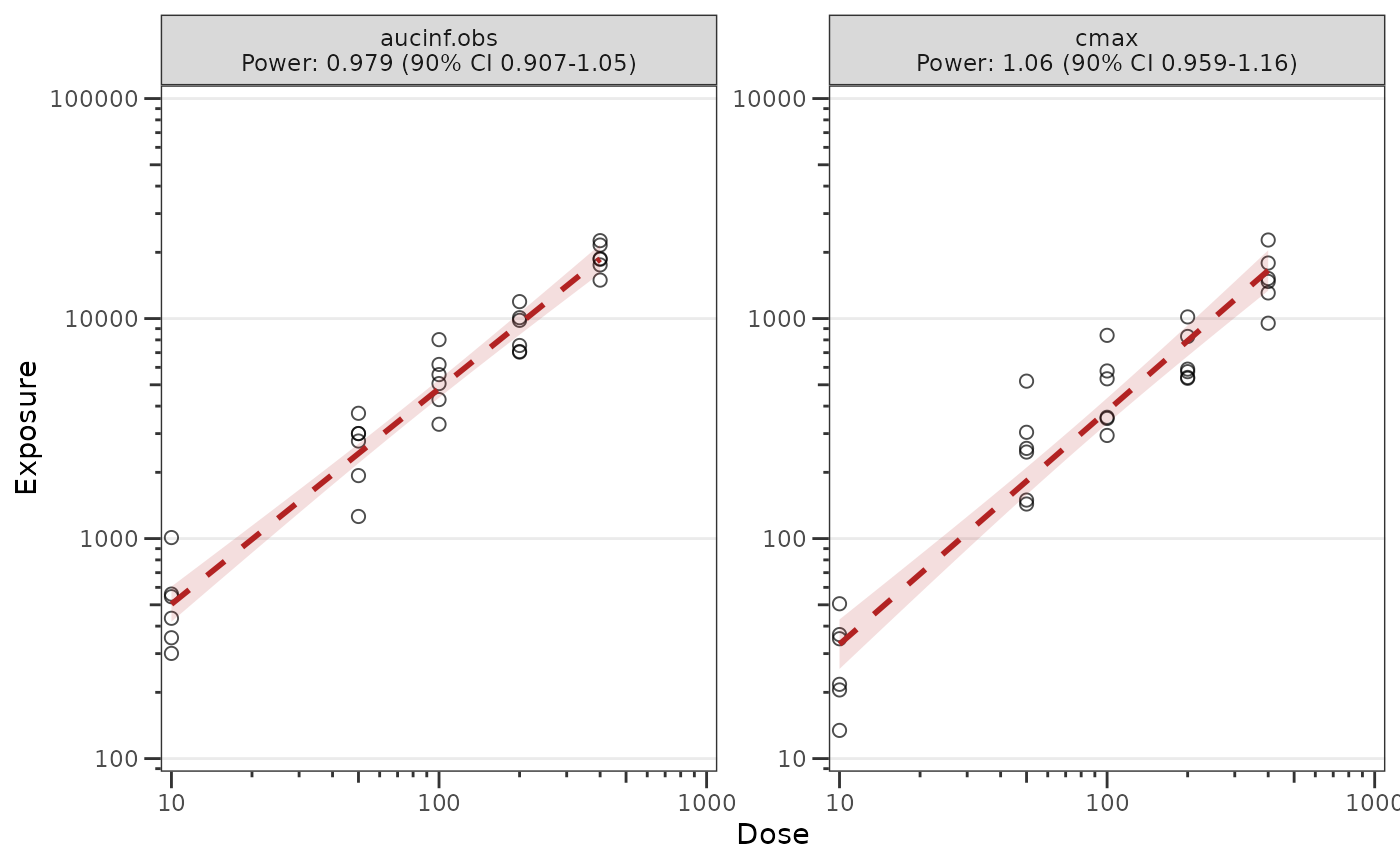

new_doseprop_theme <- plot_doseprop_theme() + new_linear_red

plot_doseprop(data = doseprop_data_nca,
                          theme = new_doseprop_theme)

Customize Colors for Central Tendency using `plot_gof_theme()`

The cent_color key in plot_gof_theme() can be used to change the colors of central tendency lines for PRED, IPRED, and DV. The example below sets the observed data and observed data mean line to black and the IPRED mean line to red with the PRED line suppressed.

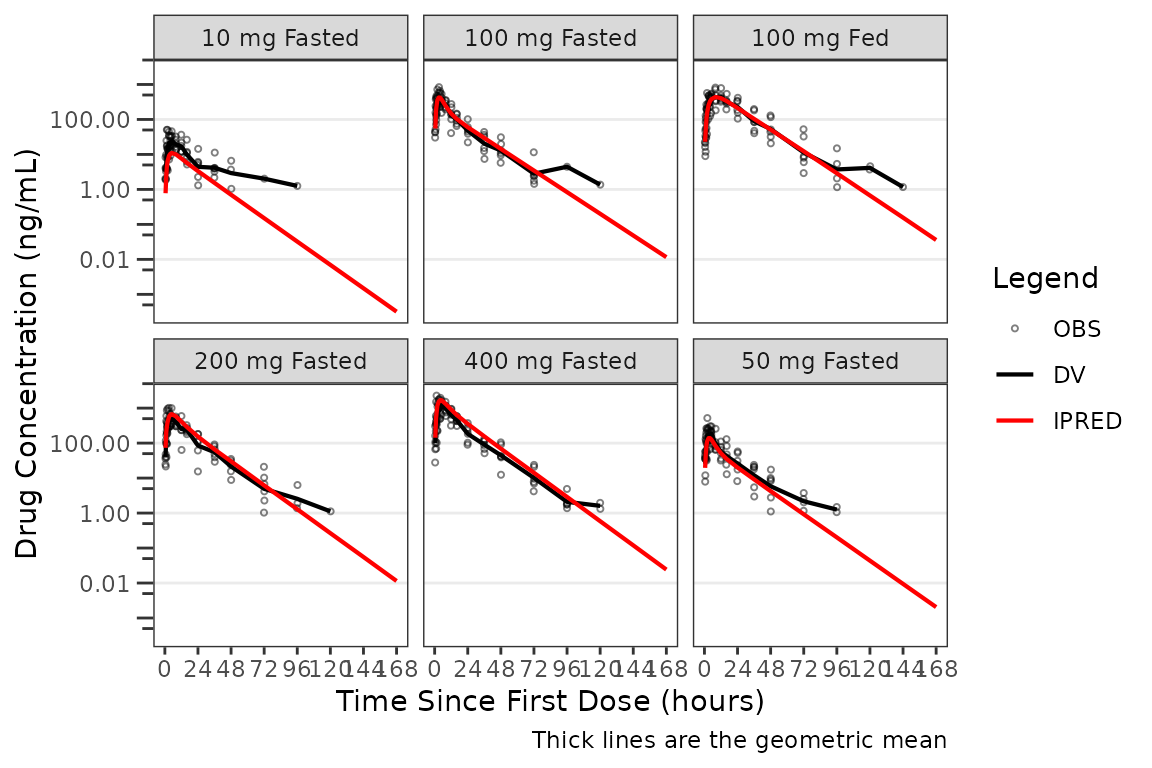

plot_gof(data = data_pkfit, dv_var = ODV, log_y = TRUE,
         theme = plot_gof_theme(obs_point = pmx_point(color = "black"),
                                cent_color = pmx_color(dv = "black", ipred = "red")),
         shown = plot_gof_shown(pred = FALSE)) +
  scale_x_continuous(breaks = seq(0, 168, 24))+
  labs(x = "Time Since First Dose (hours)", y = "Drug Concentration (ng/mL)") +
  facet_wrap(~DoseFood)

Customize VPC Color Scheme with `plot_vpc_theme()`

For VPC workflows, it is almost always preferred to set alternative theme objects that can be recycled into different VPC plot strata.

The example below sets a new VPC theme using a blue / black color schema.

new_vpc_theme <- plot_vpc_theme(obs_point = pmx_point(color = "#000000"),
                                obs_median_line = pmx_line(color = "#000000"),
                                obs_pi_line = pmx_line(color = "#000000"),
                                sim_median_ci = pmx_ribbon(fill = "#3388cc"),
                                sim_pi_ci = pmx_ribbon(fill = "#3388cc"),
                                sim_pi_area = pmx_ribbon(fill = "#3388cc"))

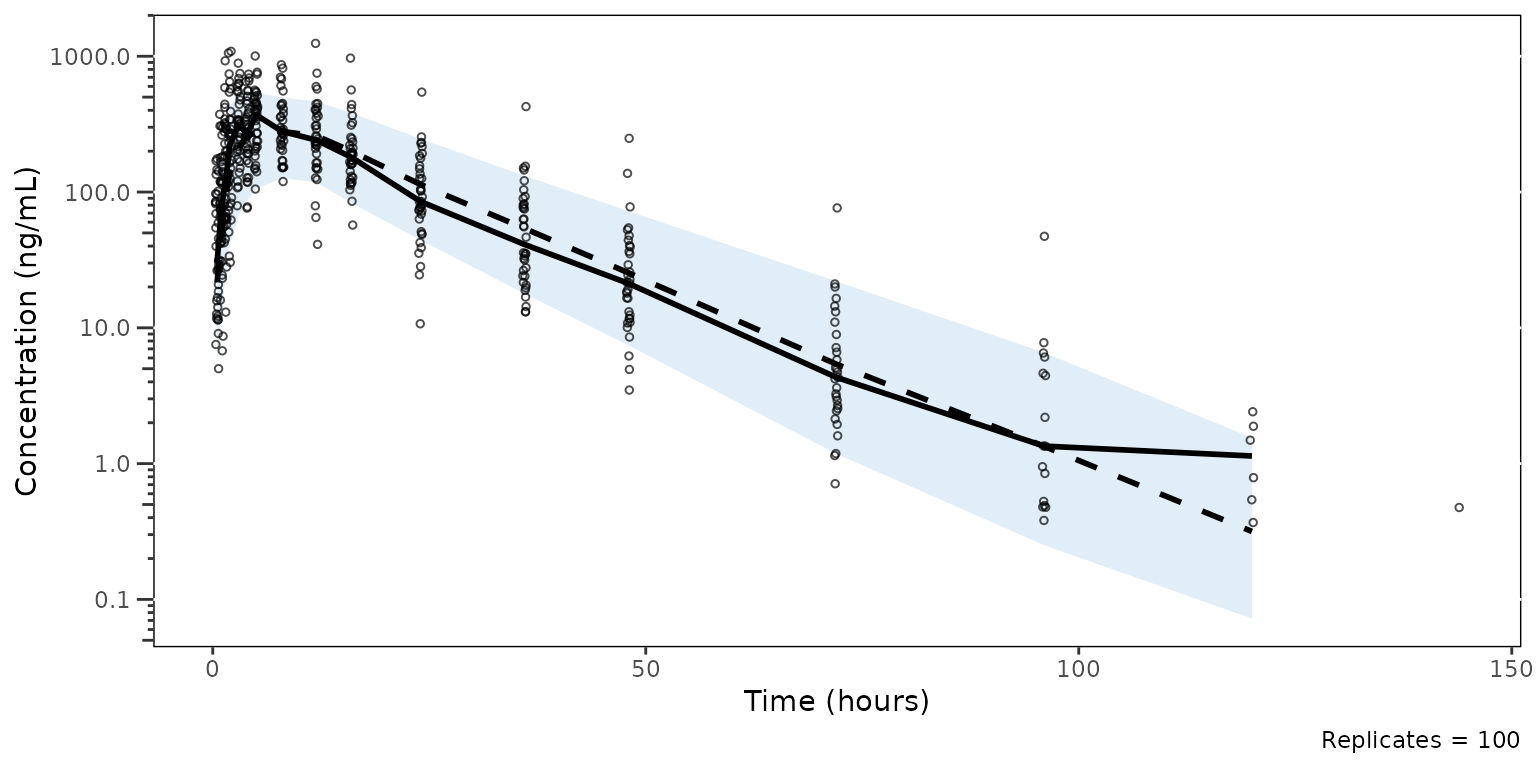

plot_vpc_cont(
  data = simout,
  pcvpc = TRUE,
  theme = new_vpc_theme,
  min_bin_count = 4,
  shown = plot_vpc_shown(sim_pi_area = TRUE, sim_pi_ci = FALSE,
                         obs_median_line = TRUE, obs_pi_line = FALSE,
                         sim_median_line = TRUE, sim_median_ci = FALSE)
) +
  labs(x = "Time (hours)", y = "Concentration (ng/mL)") +
  scale_y_log10(guide = "axis_logticks")

This object can be passed into plot_vpc_legend() to generate a legend matching the custo aesthetics of the plot, which can be paneled with the patchwork package.

plot_vpc_legend(
  theme = new_vpc_theme,
  shown = plot_vpc_shown(sim_pi_area = TRUE, sim_pi_ci = FALSE,
                         obs_median_line = TRUE, obs_pi_line = FALSE,
                         sim_median_line = TRUE, sim_median_ci = FALSE)
)

Inspecting and Validating Themes

The pmx_*() element constructors and plot_*_theme() factories return objects with shared S3 class tags — pmx_element and pmx_theme — that provide predicates for programmatic validation and a consistent print method for interactive inspection. These are useful when you build themes inside helper functions, share them across teams, or test that overrides have produced the expected structure.

Print Methods

Every element constructor returns an object whose print() method shows the element type as a banner and the set fields inline. Unset fields (those left at their NULL default) are omitted.

print(pmx_point(shape = 1, size = 2, alpha = 0.5))
#> <pmx_point>
#>   shape = 1, size = 2, alpha = 0.5

Theme factories return objects whose print() method shows the theme type as a banner and one line per theme key, listing the inner element type and its set fields. This is the same format you have already seen when calling plot_dvtime_theme(), plot_vpc_theme(), and the other factories above — the print method dispatches automatically at the REPL.

print(plot_dvtime_theme())
#> <plot_dvtime_theme>
#>   obs_point     <pmx_point>: shape = 1, size = 0.75, alpha = 0.5
#>   obs_line      <pmx_line>: linewidth = 0.5, linetype = 1, alpha = 0.5
#>   cent_point    <pmx_point>: shape = 16, size = 1.25, alpha = 0
#>   cent_line     <pmx_line>: linewidth = 0.75, linetype = 1, alpha = 1
#>   cent_errorbar <pmx_errorbar>: linewidth = 0.75, linetype = 1, alpha = 1, width = NULL
#>   ref_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1
#>   loq_line      <pmx_line>: linewidth = 0.5, linetype = 2, alpha = 1

Predicates

The shared predicates is_pmx_element() and is_pmx_theme() test whether an object came from any constructor or factory in their respective families. For a specific-type check, use inherits(x, "pmx_point") (or whichever class) directly — that’s the standard R idiom and works on every pmx_* element and plot_*_theme factory.

is_pmx_element(pmx_point())                          # TRUE
#> [1] TRUE
is_pmx_element(list(shape = 1))                      # FALSE -- a plain list, not a pmx element
#> [1] FALSE

is_pmx_theme(plot_dvtime_theme())                    # TRUE
#> [1] TRUE
inherits(plot_dvtime_theme(), "plot_dvtime_theme")   # TRUE  -- specific-type check
#> [1] TRUE
inherits(plot_vpc_theme(), "plot_dvtime_theme")   # FALSE
#> [1] FALSE

These are inside helper functions that should accept either a default-built theme or a user override, where you want to fail fast on a typo (e.g., a plain list mistakenly passed where a theme was expected).

Class Propagation Through Merge

User overrides are merged into the default theme via the internal merge_theme() helper at plot time. The merge preserves the theme’s class tags, so a customized theme still satisfies both the shared predicate and any specific-type inherits() check.

custom <- plot_dvtime_theme(obs_point = pmx_point(size = 2),
                            cent_line = pmx_line(linetype = "dashed"))

is_pmx_theme(custom)                          # TRUE
#> [1] TRUE
inherits(custom, "plot_dvtime_theme")         # TRUE
#> [1] TRUE
class(custom)
#> [1] "plot_dvtime_theme" "pmx_theme"

This means programmatic theme-building and theme-validation pipelines work uniformly on raw factory output and on any sequence of overrides applied to it.

Composing themes and elements with the `+` operator

Themes and elements support a ggplot-style + operator that performs a left-to-right merge: each set field on the right-hand side overrides the matching field on the left, and unset fields on the right leave the left-hand side untouched. The merged object keeps the class vector of the left-hand side, so partial overrides applied to a typed factory output stay typed.

base  <- plot_vpc_theme()
patch <- pmx_theme(list(obs_point = pmx_point(color = "red")))
combined <- base + patch

inherits(combined, "plot_vpc_theme")   # TRUE -- subclass preserved through the merge
#> [1] TRUE
combined$obs_point$color               # "red" -- patch field wins
#> [1] "red"
combined$obs_point$shape               # 1    -- base field persists (patch did not set it)
#> [1] 1

The same operator works on individual elements, which is useful when you want to layer a small role-specific tweak onto a shared default element rather than rebuilding the element from scratch.

shape_default <- pmx_point(shape = 1, size = 1)
color_patch   <- pmx_point(color = "#3388cc")
shape_default + color_patch
#> <pmx_point>
#>   shape = 1, size = 1, color = #3388cc

Two further predicates round out the class system. is_pmx_stats() is the shared parent predicate — it matches every stats subclass (vpc_stats, doseprop_stats) and is the right test in code that should accept any of them. is_pmx_vpc_plot() identifies plot objects whose + method emits the facet-warning behavior described in the VPC workflow article.

is_pmx_stats(doseprop_data_nca)        # TRUE -- doseprop_stats inherits from pmx_stats
#> [1] TRUE

vpc_p <- plot_vpc_cont(simout, pcvpc = TRUE)
is_pmx_vpc_plot(vpc_p)                 # TRUE
#> [1] TRUE

Data and Model Objects

data_sad

Overview

Element Constructors

Theme Factories

Naming Convention

Shared Elements Across Factories

Role-Level Shortcuts with pmx_style()

Defaults in Theme Factories

Defaults for plot_dvtime() in plot_dvtime_theme()

Defaults for plot_gof() in plot_gof_theme()

Defaults for plot_dvconc in plot_dvconc_theme()

Defaults for plot_vpc_cont in plot_vpc_theme()

Composing themes with the + operator

Examples

Make Theme Overrides Inline

Make Theme Overrides with a Reusable Theme Object

Remove Individual Data Points

Modifying color and alpha for points or lines simultaneously with pmx_style()

Trend Line Customization for plot_dvconc_theme() with pmx_trend()

Trend line customization for plot_doseprop_theme() with pmx_trend()

Customize Colors for Central Tendency using plot_gof_theme()

Customize VPC Color Scheme with plot_vpc_theme()

Inspecting and Validating Themes

Print Methods

Predicates

Class Propagation Through Merge

Composing themes and elements with the + operator

Role-Level Shortcuts with `pmx_style()`

Defaults for `plot_dvtime()` in `plot_dvtime_theme()`

Defaults for `plot_gof()` in `plot_gof_theme()`

Defaults for `plot_dvconc` in `plot_dvconc_theme()`

Defaults for `plot_vpc_cont` in `plot_vpc_theme()`

Composing themes with the `+` operator

Modifying color and alpha for points or lines simultaneously with `pmx_style()`

Trend Line Customization for `plot_dvconc_theme()` with `pmx_trend()`

Trend line customization for `plot_doseprop_theme()` with `pmx_trend()`

Customize Colors for Central Tendency using `plot_gof_theme()`

Customize VPC Color Scheme with `plot_vpc_theme()`

Composing themes and elements with the `+` operator
