Plot a dose-proportionality assessment via power law (log-log) regression

Source: R/plot_doseprop.R
plot_doseprop.Rd

Dual-mode wrapper that delegates to df_doseprop() for computation and plot_build_doseprop() for rendering. Accepts either:

  • raw observation data (e.g. PKNCA output) plus a metrics vector — the common one-shot mode; or

  • a precomputed doseprop_stats object returned by df_doseprop() — skip the regression refit and replot with different theme / se settings.

On the precomputed path, pipeline arguments (metrics, metric_name_var, metric_value_var, dose_var, method, ci, sigdigits) cannot be honored because the regression does not run again — passing any of them aborts with a message pointing the caller at df_doseprop(). Only theme and se are accepted on both paths.

Usage

plot_doseprop(
  data,
  metrics = NULL,
  metric_name_var = "PPTESTCD",
  metric_value_var = "PPORRES",
  dose_var = "DOSE",
  method = "normal",
  ci = 0.9,
  sigdigits = 3,
  se = TRUE,
  theme = NULL
)

Arguments

data

Either raw observation data (data.frame, default expected format is output from PKNCA::pk.nca()) or a doseprop_stats object returned by df_doseprop().

metrics

character vector of exposure metrics in data to plot. Required on the raw-data path; ignored when data is a doseprop_stats object.

metric_name_var

Column in data containing the metric names listed in metrics. Accepts bare names or strings. Default is PPTESTCD.

metric_value_var

Column in data containing the exposure metric values (dependent variable). Accepts bare names or strings. Default is PPORRES.

dose_var

Column in data containing the dose (independent variable). Accepts bare names or strings. Default is DOSE.

method

character string specifying the distribution to be used to derive the confidence interval. Options are "normal" (default) and "tdist".

ci

confidence interval to be calculated. Options 0.90 (default) and 0.95.

sigdigits

number of significant digits for rounding.

se

logical to display confidence interval around regression. Default is TRUE.

theme

Named list of aesthetic parameters for the plot created by plot_doseprop_theme(). Defaults can be viewed by running plot_doseprop_theme() with no arguments.

Value

a ggplot plot object

See also

Other dose proportionality: df_doseprop(), is_doseprop_stats(), plot_build_doseprop(), plot_doseprop_theme()

Examples

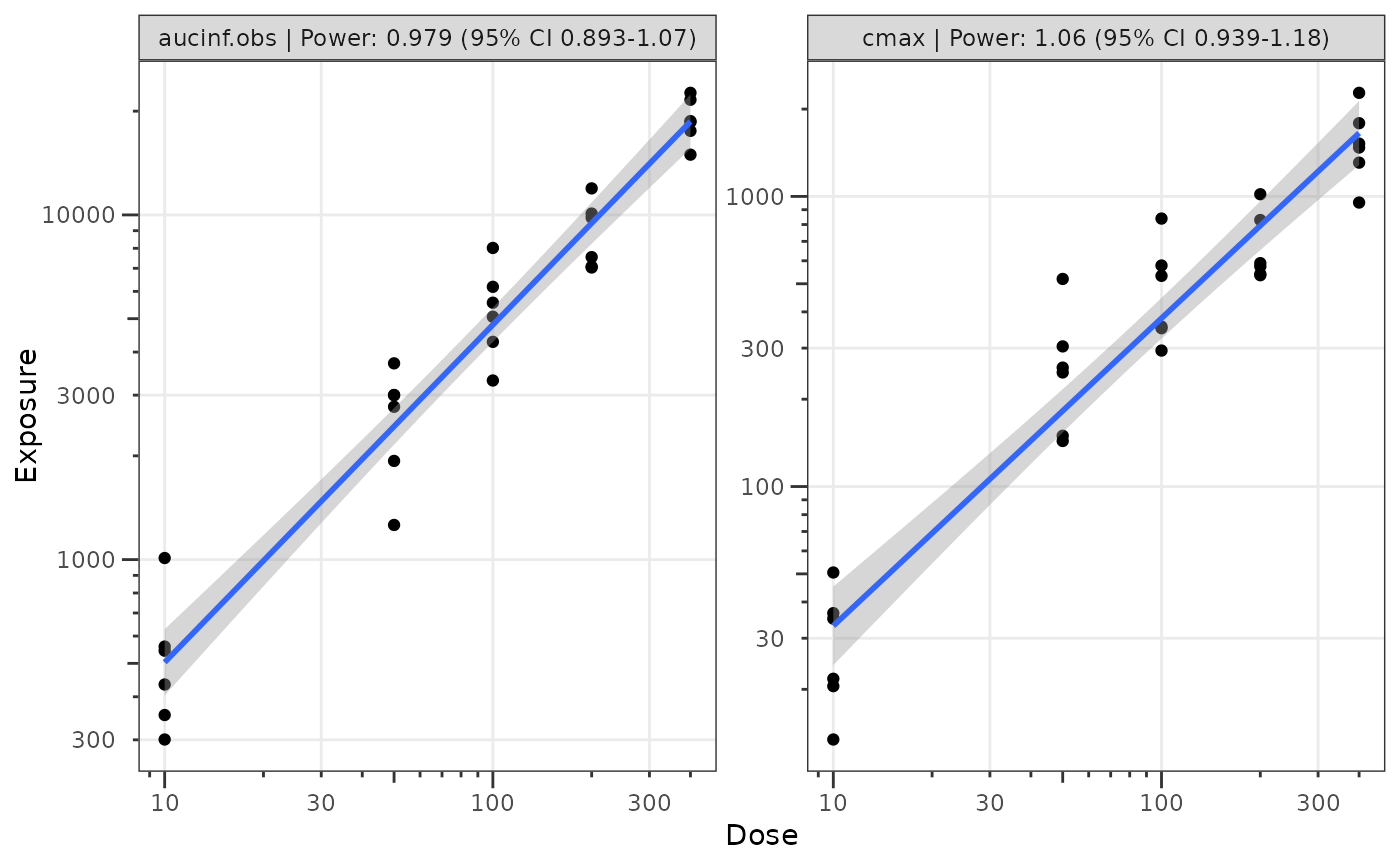

# Raw-data path
plot_doseprop(dplyr::filter(data_sad_nca, PART == "Part 1-SAD"),
               metrics = c("aucinf.obs", "cmax"))


# Precomputed path: compute once, replot many times
stats <- df_doseprop(dplyr::filter(data_sad_nca, PART == "Part 1-SAD"),
                      metrics = c("aucinf.obs", "cmax"))

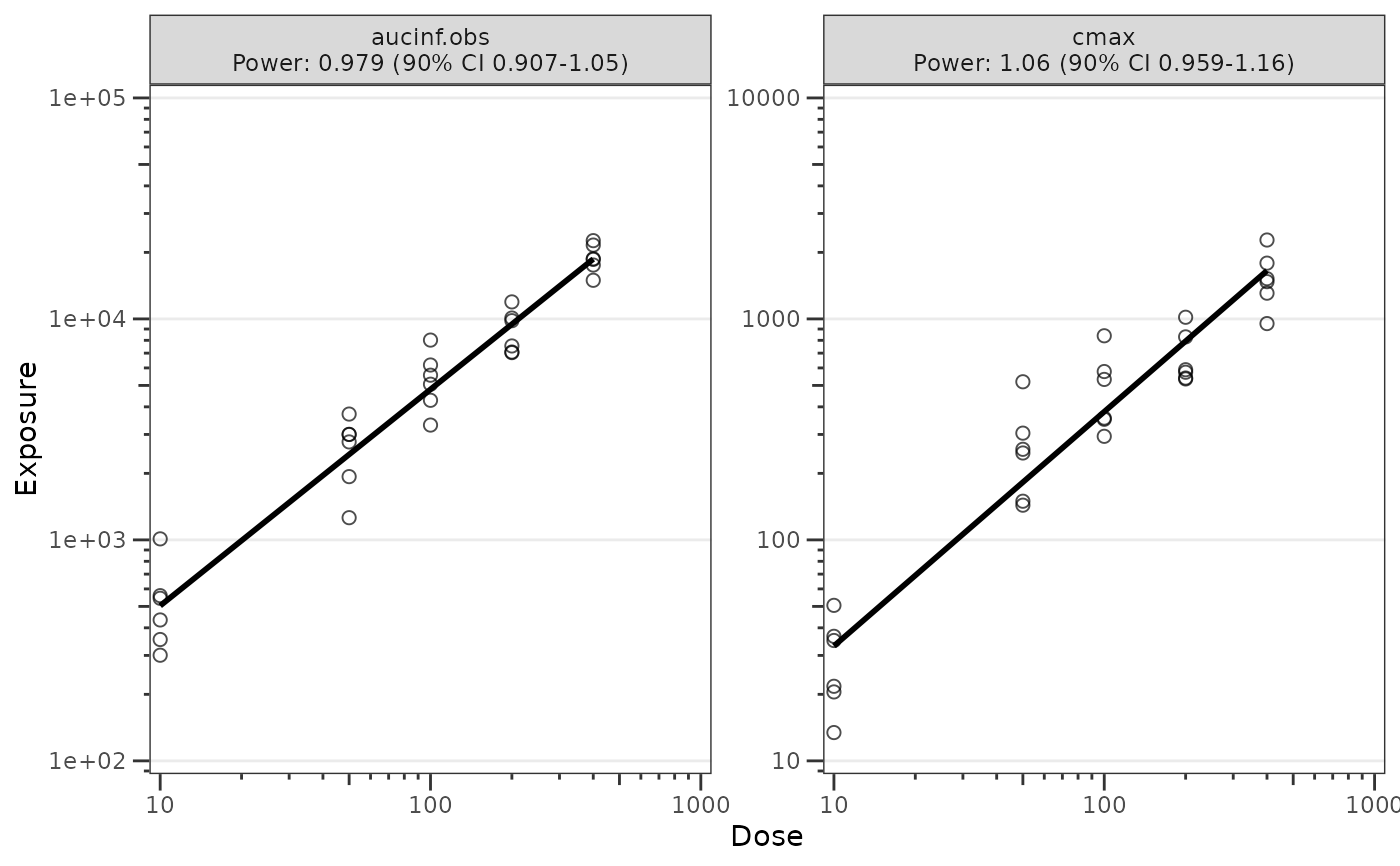

plot_doseprop(stats)

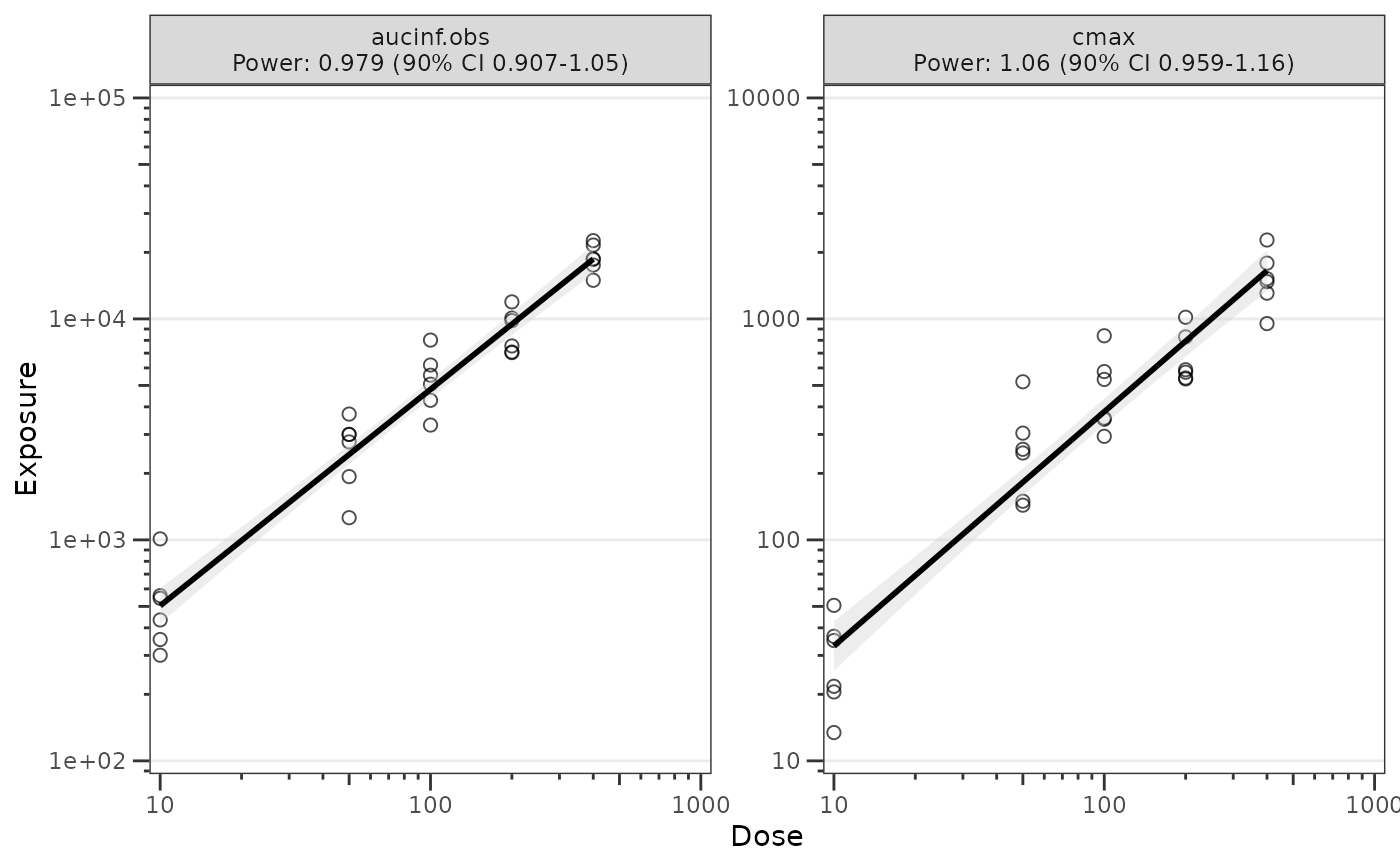

plot_doseprop(stats, se = FALSE)
