Wrapper function for plot_dvtime to plot two dependent variables paneled together

Usage

plot_dvtime_dual(
  data,
  dv_var1 = "DV",
  dv_var2 = "DV",
  dvid_var = "CMT",
  dvid_val1 = 2,
  dvid_val2 = 3,
  time_vars = c(TIME = "TIME", NTIME = "NTIME"),
  timeu = "hours",
  col_var = NULL,
  grp_var = "ID",
  dose_var = "DOSE",
  loq = NULL,
  loq_method = 0,
  cent = "mean",
  obs_dv = TRUE,
  grp_dv = FALSE,
  dosenorm = FALSE,
  cfb = FALSE,
  cfb_base = 0,
  ylab1 = "Concentration",
  ylab2 = "Response",
  log_y1 = FALSE,
  log_y2 = FALSE,
  show_caption1 = TRUE,
  show_caption2 = TRUE,
  n_breaks = 8,
  onelegend = TRUE,
  theme = NULL
)

Arguments

data

Input dataset.

dv_var1

Character string specifying the variable containing observations for the top panel (DV1). Default is "DV".

dv_var2

Character string specifying the variable containing observations for the bottom panel (DV2). Default is "DV".

dvid_var

Character string specifying the variable to identify each observation type.

dvid_val1

Value of variable specified in dvid_var to identify observations for the top panel (DV1).

dvid_val2

Value of variable specified in dvid_var to identify observations for the bottom panel (DV2).

time_vars

Names of actual and nominal time variables. Must be named character vector. Defaults is: c(TIME="TIME", NTIME="NTIME").

timeu

Character string specifying units for the time variable. Passed to breaks_time and assigned to default x-axis label. Options include:

"hours" (default)
"days"
"weeks"
"months"

col_var

Character string of the name of the variable to map to the color aesthetic.

grp_var

Character string of the variable to map to the group aesthetic. Default is "ID"

dose_var

Character string of the variable to use in dosenormalization when dosenorm = TRUE. Default is "DOSE".

loq

Numeric value of the lower limit of quantification (LLOQ) for the assay. Must be coercible to a numeric if specified. Can be NULL if variable LLOQ is present in data Specifying this argument implies that DV is missing in data where < LLOQ.

loq_method

Method for handling data below the lower limit of quantification (BLQ) in the plot.

Options are:

+ `0` : No handling. Plot input dataset `DV` vs `TIME` as is. (default)
+ `1` : Impute all BLQ data at `TIME` <= 0 to 0 and all BLQ data at `TIME` > 0 to 1/2 x `loq`.
   Useful for plotting concentration-time data with some data BLQ on the linear scale
+ `2` : Impute all BLQ data at `TIME` <= 0 to 1/2 x `loq` and all BLQ data at `TIME` > 0 to 1/2 x `loq`.
   Useful for plotting concentration-time data with some data BLQ on the log scale where 0 cannot be displayed

cent

Character string specifying the central tendency measure to plot.

Options are:

Mean only: "mean" (default)
Mean +/- Standard Deviation (upper and lower error bar): "mean_sdl"
Mean + Standard Deviation (upper error bar only): "mean_sdl_upper"
Median only: "median"
Median +/- Interquartile Range: median_iqr
None: "none"

obs_dv

Logical indicating if observed data points should be shown. Default is TRUE.

grp_dv

Logical indicating if observed data points should be connected within a group (i.e., spaghetti plot). Default is FALSE.

dosenorm

logical indicating if observed data points should be dose normalized. Default is FALSE, Requires variable specified in dose_var to be present in data

cfb

Logical indicating if dependent variable is a change from baseline. Plots a reference line at y = cfb_baseline. Default is FALSE.

cfb_base

Value for y-intercept when cfb = TRUE. Default is 0.

ylab1

Character string specifying the y-axis label for the top panel (DV1): Default is "Concentration".

ylab2

Character string specifying the y-axis label for the bottom panel (DV2): Default is "Response".

log_y1

Logical indicator for log10 transformation of the y-axis for the top panel (DV1). Default is FALSE.

log_y2

Logical indicator for log10 transformation of the y-axis for the bottom panel (DV2). Default is FALSE.

show_caption1

Logical indicating if a caption should be show describing the data plotted for the top panel (DV1).

show_caption2

Logical indicating if a caption should be show describing the data plotted for the bottom panel (DV2).

n_breaks

Number of breaks requested for x-axis. Default is 8.

onelegend

Logical indicator if the plot legends should be collected into a single legend. Default is FALSE.

theme

Named list of aesthetic parameters to be supplied to the plot. Defaults can be viewed by running plot_dvtime_theme() with no arguments. Default width_errorbar is 2.5% of maximum NTIME.

Value

A ggplot2 plot object

Examples

data <- df_addn(dplyr::mutate(data_sad_pd, Dose=DOSE), grp_var="Dose", sep="mg")
#> Joining with `by = join_by(Dose)`

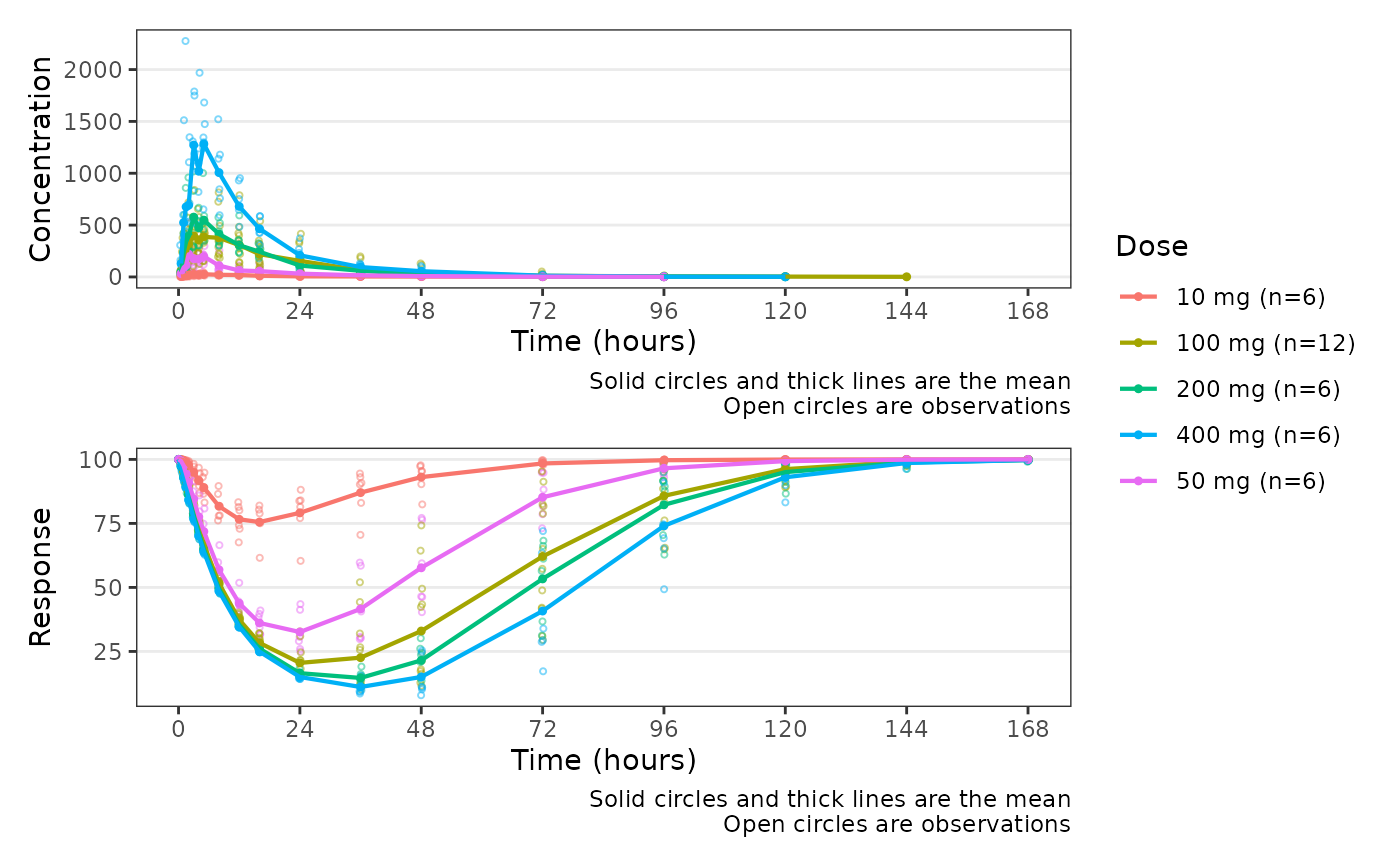

plot_dvtime_dual(data, dv_var1 = "ODV", dv_var2 = "ODV", col_var = "Dose")
#> Warning: Removed 169 rows containing non-finite outside the scale range
#> (`stat_summary()`).
#> Warning: Removed 169 rows containing non-finite outside the scale range
#> (`stat_summary()`).
#> Warning: Removed 169 rows containing missing values or values outside the scale range
#> (`geom_point()`).
