Build a dose-proportionality ggplot from a doseprop_stats object

Constructs a log-log regression scatter plot from a df_doseprop() result (or any object satisfying the doseprop_stats contract). Recovers the observation rows and column names from the object's attributes, builds the faceting label from the per-metric PowerCI text, and renders the scatter

• trend layers.

Most users will reach this function indirectly via plot_doseprop(). Call plot_build_doseprop() directly when working from a manually- constructed or cached doseprop_stats object — for example, plotting a precomputed result from disk or a custom pipeline that produces compatible columns and attributes.

Usage

plot_build_doseprop(stats, theme = NULL, se = TRUE)

Arguments

stats

A doseprop_stats object (typically the output of df_doseprop()). Must contain $obs and $config slots with metric_name_var, metric_value_var, dose_var, and ci. Validated by validate_doseprop_stats() at entry.

theme

Named list of aesthetic parameters for the plot created by plot_doseprop_theme(). Defaults can be viewed by running plot_doseprop_theme() with no arguments.

se

logical to display confidence interval around regression. Default is TRUE.

Value

a ggplot plot object

See also

Other dose proportionality: df_doseprop(), is_doseprop_stats(), plot_doseprop(), plot_doseprop_theme()

Examples

stats <- df_doseprop(dplyr::filter(data_sad_nca, PART == "Part 1-SAD"),
                      metrics = c("aucinf.obs", "cmax"))

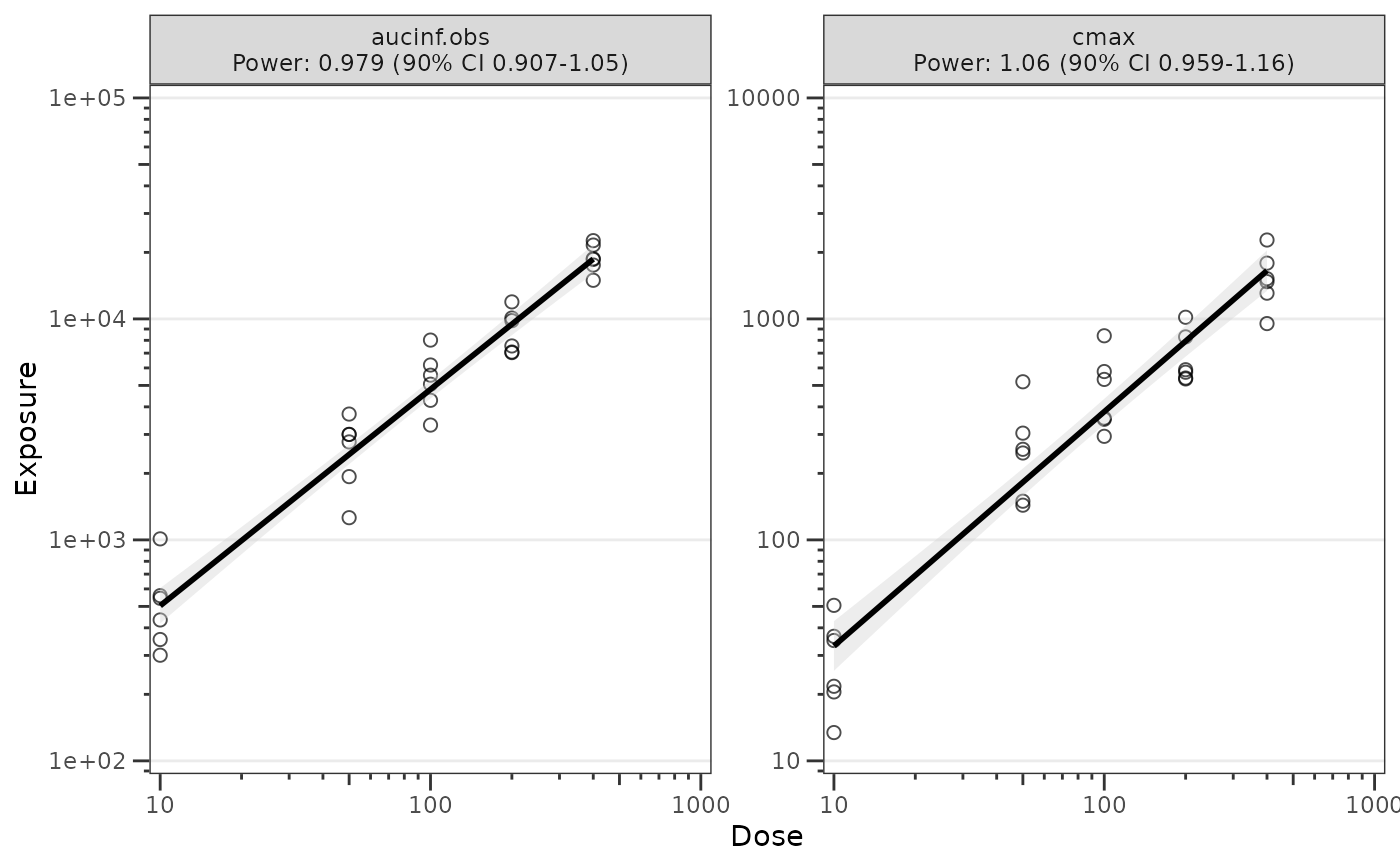

plot_build_doseprop(stats)

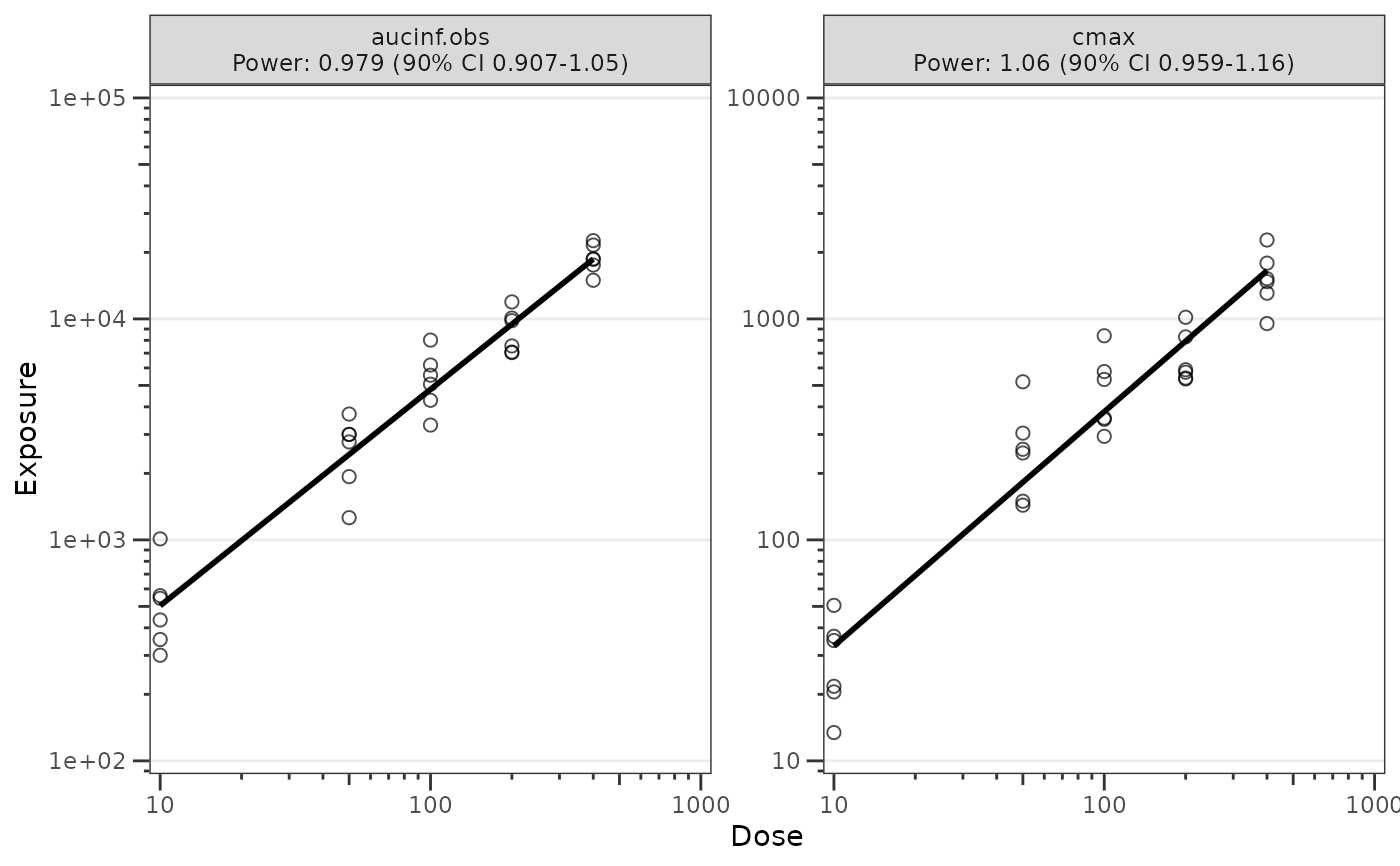

plot_build_doseprop(stats, se = FALSE)
